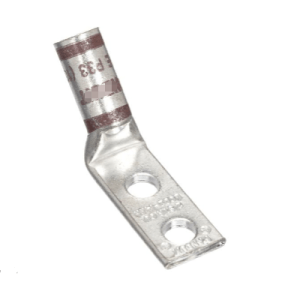

D2-5634HW 45° T2 Copper Compression Lug | 2 AWG | 5/16″ Stud | 3/4″ Spacing | Brown Code

Description

  • Feature : 45-degree angled design manufactured from high-conductivity T2 copper, featuring 5/16″ stud hole with 3/4″ center spacing and brown color coding

  • Advantage : Angled design provides optimal accessibility in confined spaces while T2 copper ensures maximum conductivity and corrosion resistance

  • Benefit : Enables easier installation in tight panel layouts, reduces labor time, and ensures long-term connection reliability in industrial applications

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 2 AWG

  • Stud Size: 5/16″

  • Hole Spacing: 3/4″ Center

  • Tongue Angle: 45°

  • Color Code: Brown

  • Barrel Type: Standard

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical distribution boxes, compact equipment wiring, and applications requiring reliable angled connections in space-constrained environments.

Send email to us

Dimensions

Bolt Size5/16 in
Hole Spacing(H)3/4 in
Tang Width (C)0.60 in
Barrel length (B)0.88 in
Overall length (L)2.49 in
Inner diameter (ID)0.31 in
Outer diameter (OD)0.42 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Related Products

Wire harness finished product

123456

Cable Lugs Application

1234

We are committed to: new material technology research and development and in-depth customization services

Kunshan Xinluan New Material Technology Co.
Sales Office: Room 2005, Building 21, Jitian International Plaza, No.672 Chuangye Road, Kunshan Development Zone, Kunshan, China
Postal Code: 215300
Tel: +86 13285110837
Email: Anny@xinluancq.com
Email: Tina@suqinsz.com
Email:Jean@xinluancq.com
WhatsApp: 8613285110837
