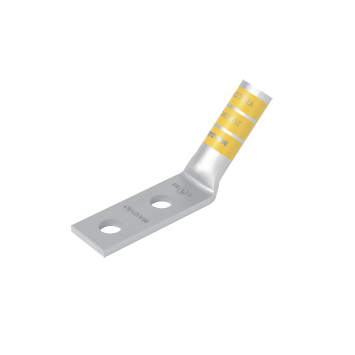

D250-3801HW 45°Copper Lug AWG 250KCM# two hole 3/8 hole spacing 1 long barrel color printed terminal

Description

Premium ‌T2 copper‌ lug with ‌45° offset design‌ for high-current applications, featuring:

  • ‌Two-hole 3/8″ spacing‌ (ANSI/NEMA compliant) for secure busbar mounting89
  • ‌Cold-forged long barrel‌ enhances vibration resistance and cable grip strength69
  • ‌Color-coded printing‌ for corrosion identification in harsh environments3
  • ‌Optimized for solar farms and marine power systems‌ (-40°C to 105°C operating range)
Send email to us

Dimensions

Bolt Size3/8 in
Hole Spacing (H)1 in
Tang Width (C)1.14 in
Barrel length (B)1.25 in
Overall length (L)3.13 in
Inner diameter (ID)0.63 in
Outer diameter (OD)0.77 in

General Specifications

ColourYellow
MaterialCopper
Tongue TypeStandard
Tongue Angle45 Angle
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Related Products

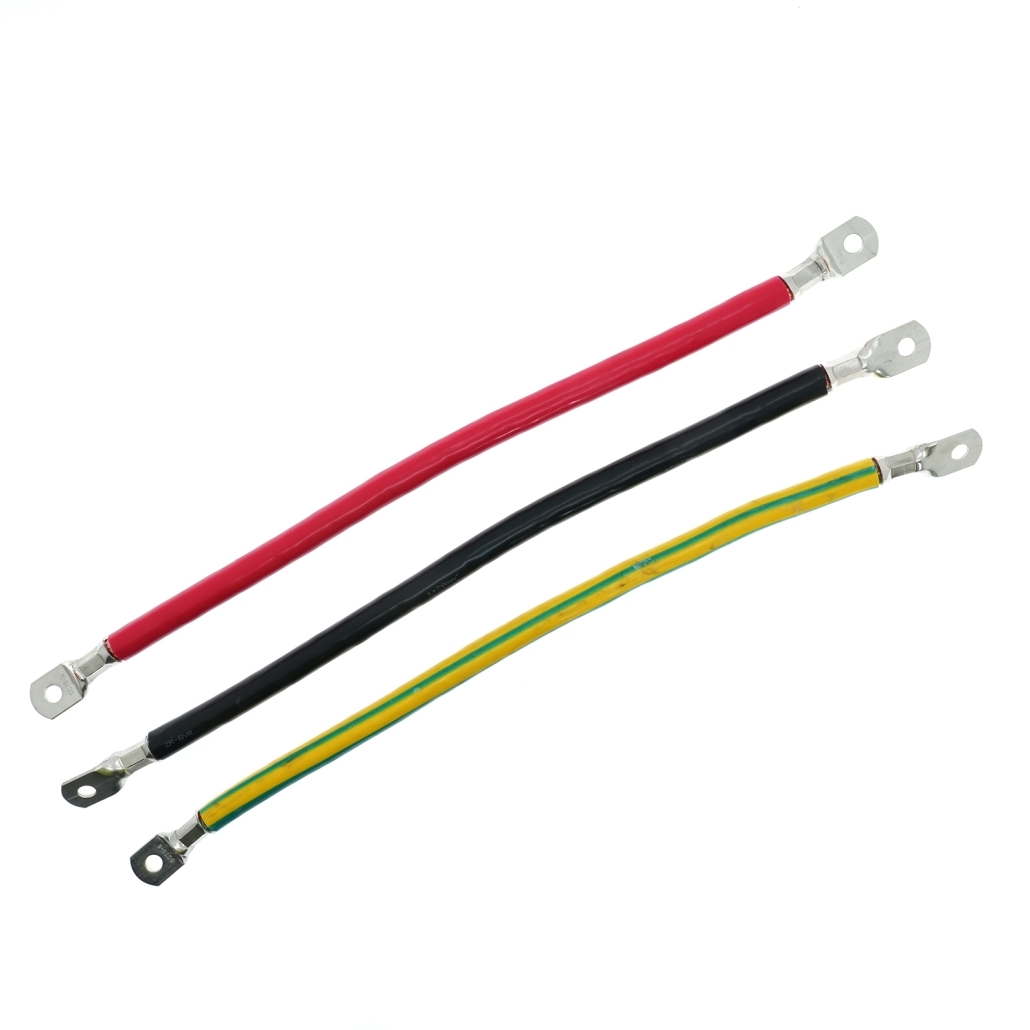

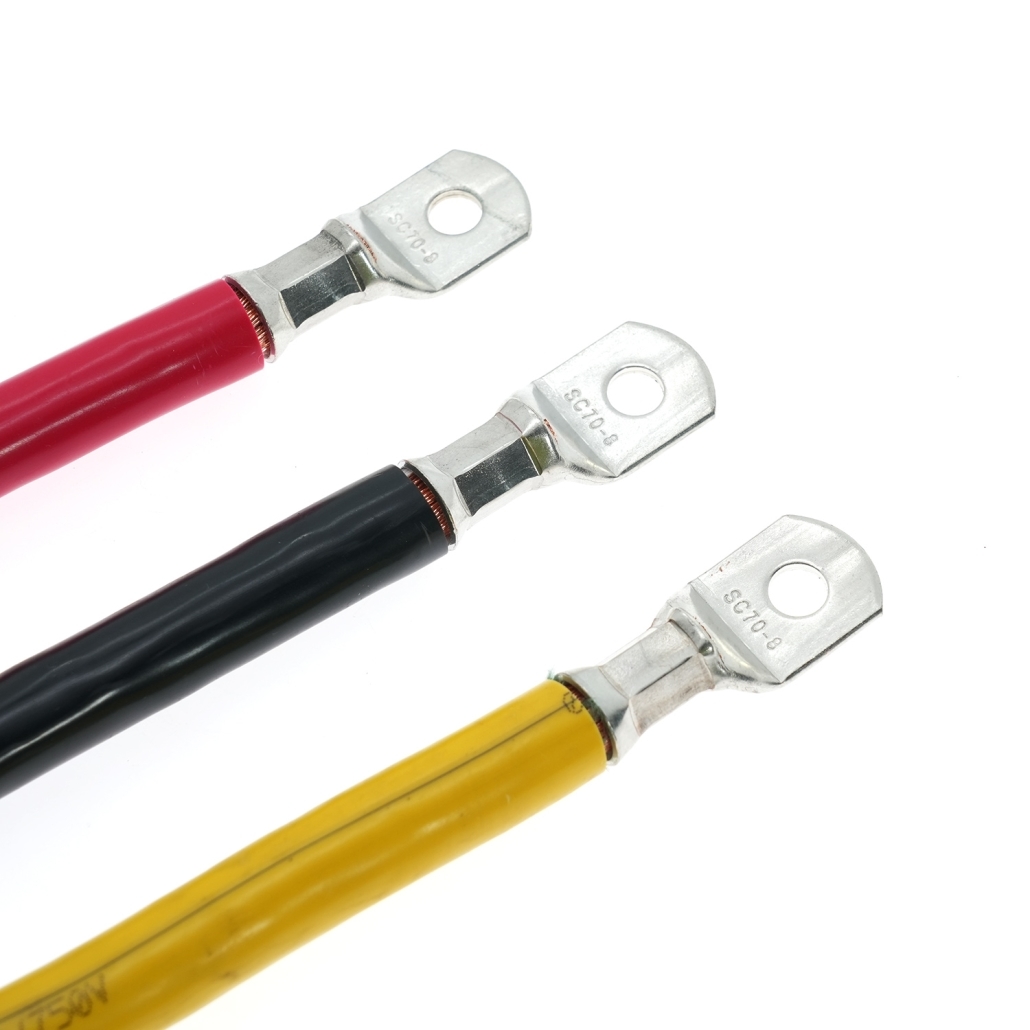

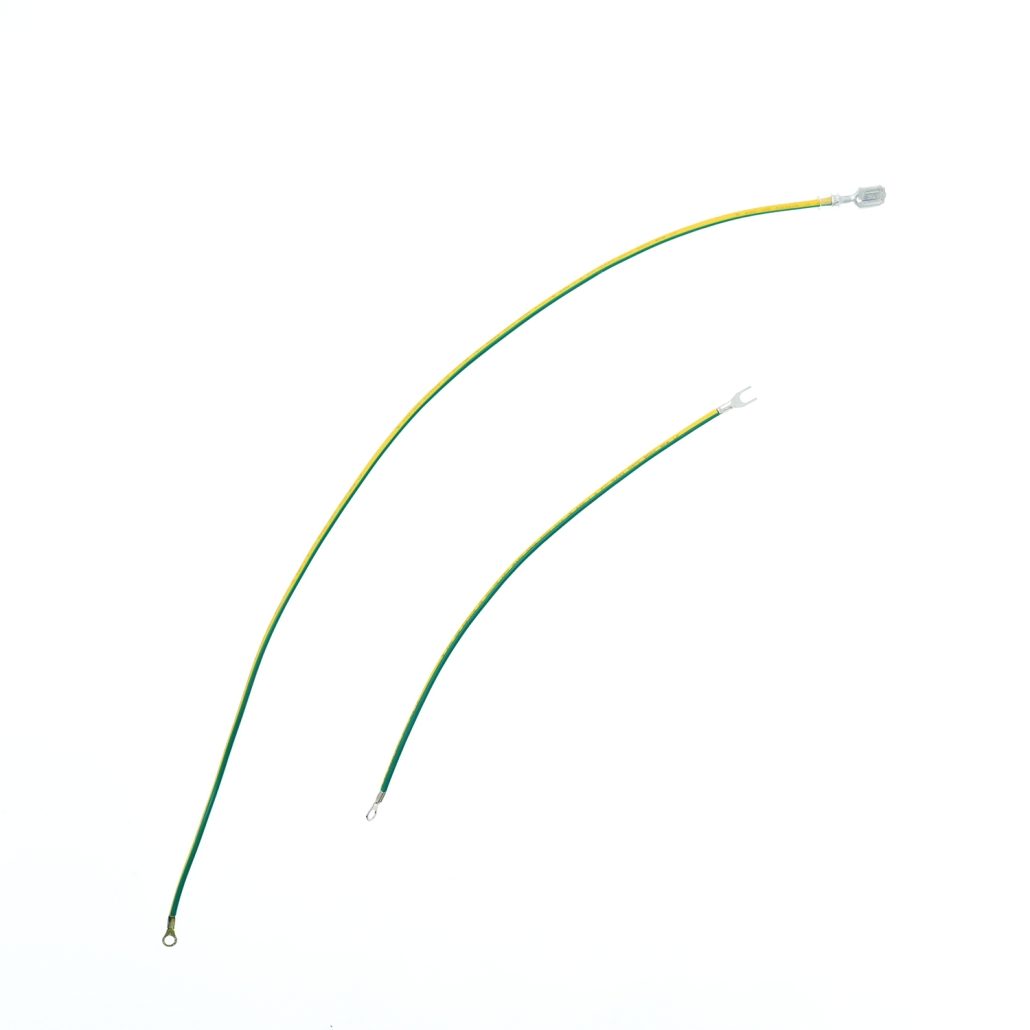

Wire harness finished product

123456

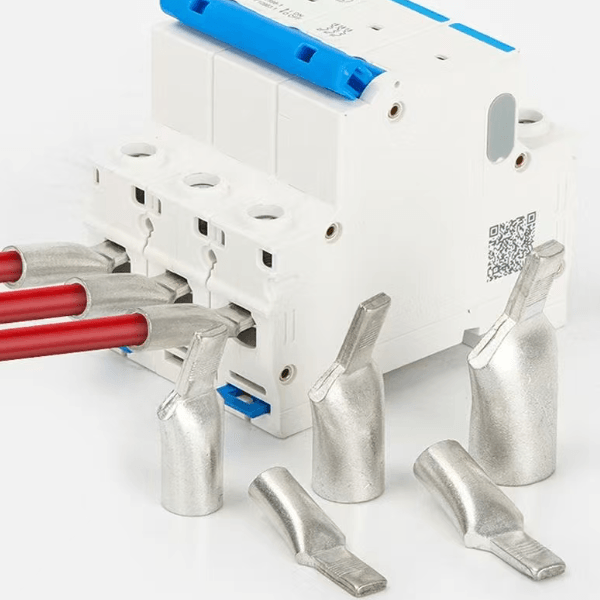

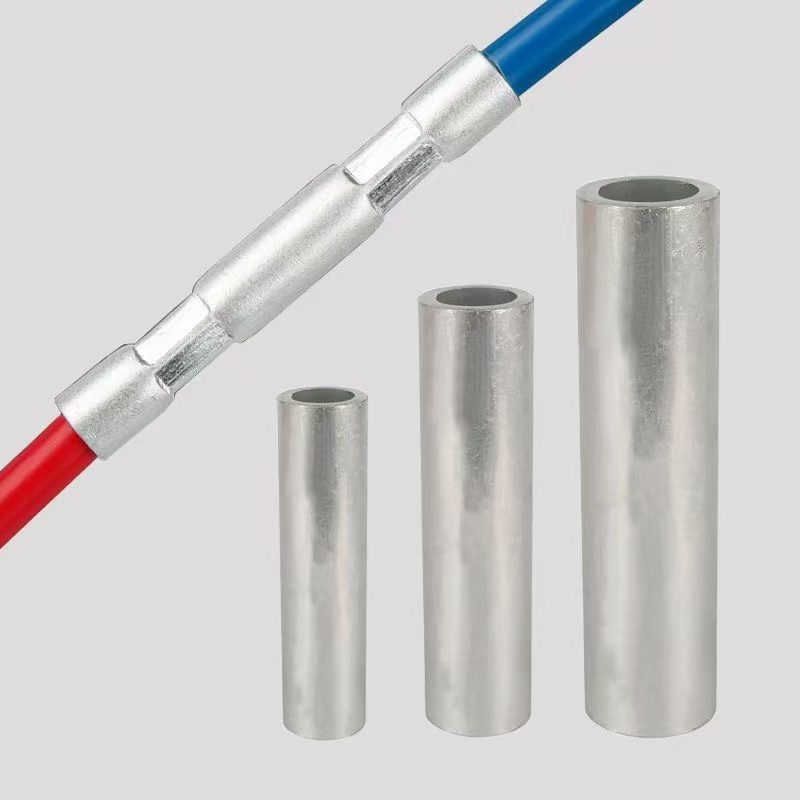

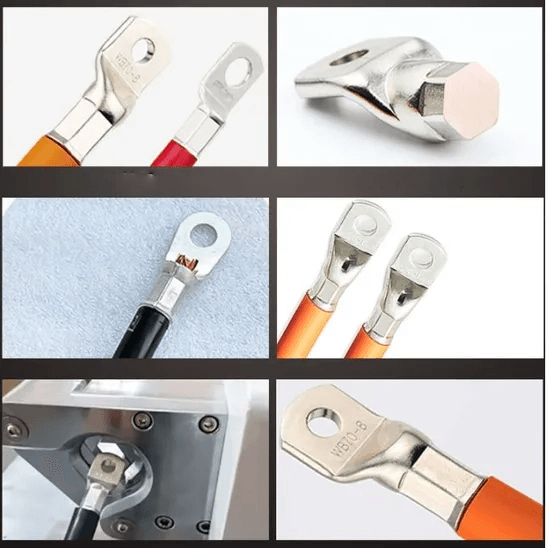

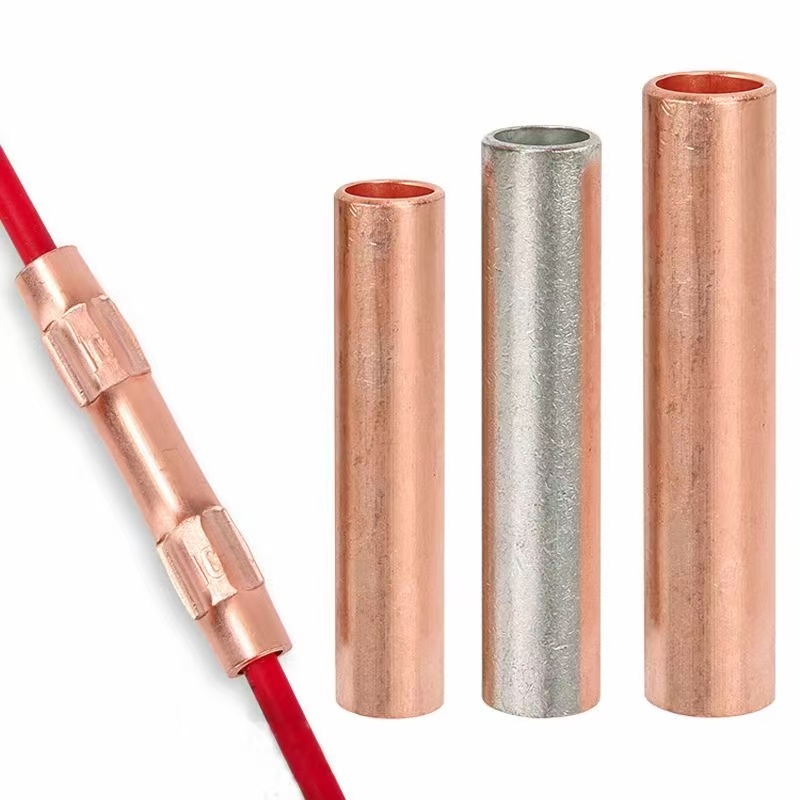

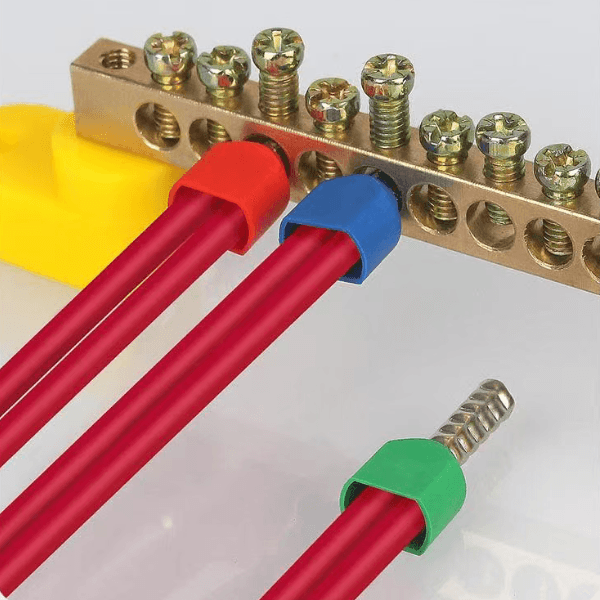

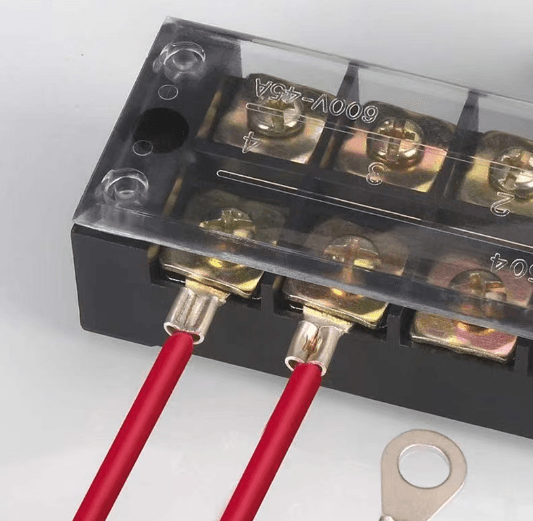

Cable Lugs Application
