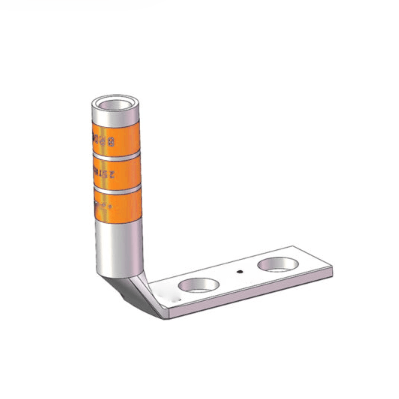

D3/0-1434FW 90°Copper Lug AWG 3/0# two hole 1/4 hole spacing 3/4 standard barrel orange

D3/0-1434FW AWG 3/0# two hole 1/4 hole spacing 3/4 standard barrel orange

Description

Industrial-grade ‌T2 copper‌ terminal featuring:

‌Forged T2 copper barrel‌ (99.95% purity) with 101% IACS conductivity for 200A continuous current
‌Dual 1/4″ hole spacing‌ (3/4″ standard barrel) ensures vibration-resistant bolting in substations/switchgear
‌Electrolytic tin plating‌ resists corrosion (-40°C to 125°C) in harsh environments
‌Orange PVC insulation‌ meets UL 486B, CSA C22.2, and IEC 61238-1 Class B standards

‌Certified for‌: Transformer grounding, busbar joints, and renewable energy systems.

Send email to us

Dimensions

Bolt Size	1/4in
Hole Spacing (H)	3/4 in
Tang Width (C)	0.91 in
Barrel length (B)	1.00 in
Overall length (L)	2.40 in
Inner diameter (ID)	0.51 in
Outer diameter (OD)	0.63 in

General Specifications

Colour Code	Orange
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
