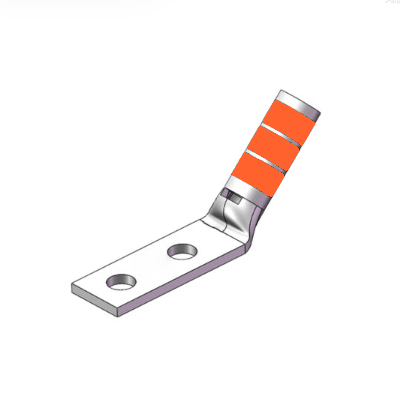

D3/0-1434HW 45 Degree Angle Copper Lugs AWG3/0# two hole 1/4 hole spacing 3/4 orange

Description

Premium T2 Copper Construction‌: The D3/0-1434HW lugs feature high-purity T2 copper, ensuring superior conductivity and corrosion resistance for heavy-duty applications.

‌Precision 45° Angle Design‌: Engineered for AWG 3/0# cables, this two-hole lug (3/4″ orange) provides a secure, low-resistance connection with its 1/4″ hole spacing, ideal for tight installations.

‌Versatile Applications‌: Designed for industrial, automotive, and power distribution systems, these cold-pressed lugs deliver consistent performance under extreme conditions.

‌Certified Quality‌: Compliant with industry standards for power transmission efficiency, making it a trusted choice for professional electrical installations.

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	3/4 in
Tang Width (C)	0.91 in
Barrel length (B)	1 in
Overall length (L)	2.50 in
Inner diameter (ID)	0.51 in
Outer diameter (OD)	0.63 in

General Specifications

Colour	Orange
Material	Copper
Tongue Type	Standard
Tongue Angle	45 Degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
