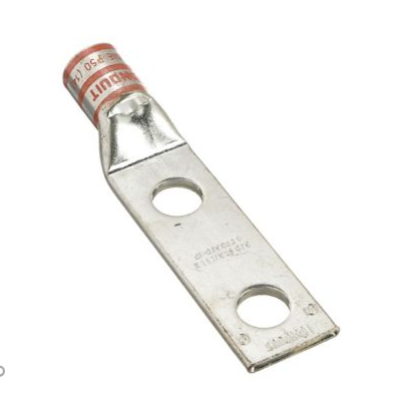

T2 Copper Compression Lug (D3/0-3801/W) | 3/0 AWG Wire | 3/8″ Stud Diameter | Two-Hole Mounting | Code Orange PVC Insulation

Description

Constructed with high-purity T2 copper for maximum electrical conductivity and corrosion resistance. Compatible with 3/0 AWG cable and designed for 3/8-inch stud connections. Features a two-hole mounting configuration for secure mechanical fastening. Exterior insulation is color-coded orange for rapid identification in electrical systems.

Intended for use in high-performance applications including industrial power systems, renewable energy infrastructure, telecommunications power networks, and heavy-duty electrical grounding. Meets industry standards for safety and performance.

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1.00 in
Tang Width (C)0.91 in
Barrel length (B)1.50 in
Overall length (L)3.76 in
Inner diameter (ID)0.51 in
Outer diameter (OD)0.63 in

General Specifications

ColourOrange
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
