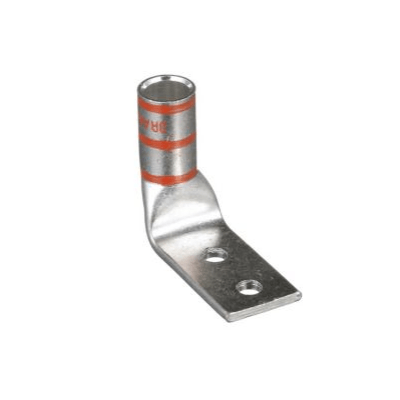

DL3/0-3801FW 90° T2 Copper Compression Lug | 3/0 AWG | 2-Hole 3/8″ Stud | 1″ Spacing | Orange Code

Description

  • Feature : 90-degree angled design manufactured from high-conductivity T2 copper, featuring dual 3/8″ stud holes with 1-inch center spacing and orange insulation coding

  • Advantage : Provides superior mechanical stability through two-point mounting, ensuring vibration resistance while maintaining optimal electrical conductivity in right-angle applications

  • Benefit : Delivers reliable power transmission in high-vibration environments, reduces connection failures, and enables quick circuit identification through distinctive orange coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 3/0 AWG

  • Stud Size: 3/8″ (Dual Holes)

  • Hole Spacing: 1 Inch

  • Mounting: 2-Hole Pattern

  • Tongue Angle: 90°

  • Color Code: Orange

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution systems, electrical substations, heavy machinery wiring, renewable energy installations, and applications requiring vibration-resistant right-angle connections.

Send email to us

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1.00 in
Tang Width (C)0.91 in
Barrel length (B)1.00 in
Overall length (L)2.90 in
Inner diameter (ID)0.51 in
Outer diameter (OD)0.63 in

General Specifications

ColourOrange
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
