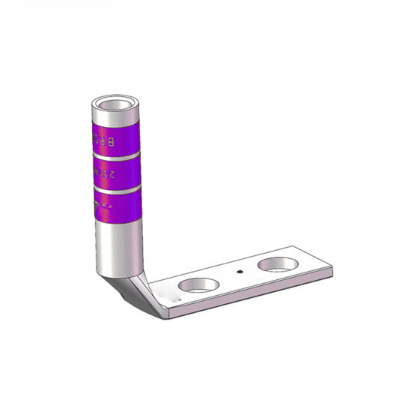

D4/0-1434FW 90°Copper Lug AWG 4/0# two hole 1/4 hole spacing 3/4 color printed terminal

Description

Heavy-duty ‌90° T2 copper‌ terminal featuring:

‌Forged T2 copper barrel‌ (99.95% purity) with 102% IACS conductivity for 250A continuous current
‌Dual 1/4″ hole spacing‌ (3/4″ barrel) enables vibration-resistant bolting in confined spaces
‌Color-coded PVC insulation‌ simplifies circuit identification in complex cabinets
‌90° angled design‌ reduces cable bend radius by 60% versus straight lugs

‌Certified for‌: Switchgear, busbar risers, and renewable energy combiner boxes.

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing (H)	3/4 in
Tang Width (C)	1.02 in
Barrel length (B)	1.19 in
Overall length (L)	2.50 in
Inner diameter (ID)	0.56 in
Outer diameter (OD)	0.70 in

General Specifications

Colour Code	Purple
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
