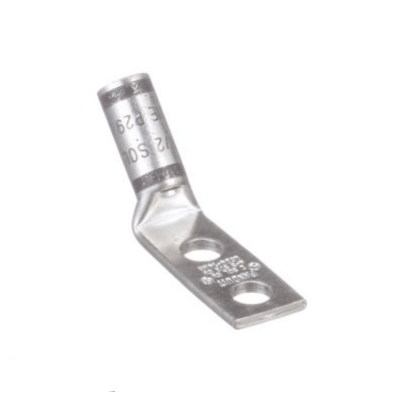

D4-1034FW compression lug for 4 AWG cable, manufactured from T2 copper with two #10 stud holes at 3/4" center spacing and gray insulation coding.D4-1034FW compression lug for 4 AWG cable, manufactured from T2 copper with two #10 stud holes at 3/4″ center spacing and gray insulation coding.
D4-1034FW compression lug for 4 AWG cable, manufactured from T2 copper with two #10 stud holes at 3/4" center spacing and gray insulation coding.
D4-1034FW compression lug for 4 AWG cable, manufactured from T2 copper with two #10 stud holes at 3/4" center spacing and gray insulation coding.

D4-1034FW T2 Copper Compression Lug | 4 AWG | 2-Hole #10 Stud | 3/4″ Spacing | Gray Code

Description

  • Feature : Precision-engineered compression lug manufactured from high-conductivity T2 copper, featuring dual #10 stud holes with 3/4″ center spacing and gray insulation

  • Advantage : Dual-hole mounting provides enhanced mechanical stability against vibration and rotation, while T2 copper construction ensures optimal electrical conductivity and corrosion resistance

  • Benefit : Ensures reliable power transmission in demanding applications, reduces maintenance requirements, and provides clear circuit identification through distinctive gray coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 4 AWG

  • Stud Size: #10 (Dual Holes)

  • Hole Spacing: 3/4″ Center

  • Mounting: 2-Hole Pattern

  • Color Code: Gray

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical distribution systems, power equipment, and applications requiring secure, vibration-resistant connections with reliable circuit identification.

Send email to us

Dimensions

Bolt Size#10 in
Hole Spacing(H)3/4 in
Tang Width (C)0.50 in
Barrel length (B)0.81 in
Overall length (L)1.78 in
Inner diameter (ID)0.28 in
Outer diameter (OD)0.38 in

General Specifications

ColourGray
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
