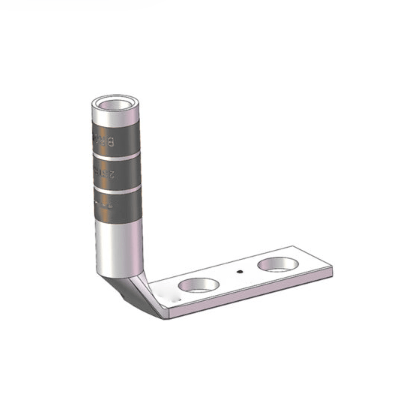

D4-1058FW 90°Copper Lugs AWG 4# two hole #10 hole spacing 5/8 long barrel Gray

Description

Industrial-grade ‌T2 copper‌ terminal featuring:

‌90° right-angle design‌ with dual #10 holes (5/8″ center spacing) for secure busbar mounting in confined spaces
‌Extended 5/8″ barrel length‌ accommodates thicker cable insulation layers while maintaining 100% IACS conductivity
‌Gray oxidation-resistant coating‌ withstands industrial environments (-40°C to 125°C operational range)
‌Hexagonal crimp zone‌ with beveled wire entry ensures vibration-proof connections per IEC 61373 standards

‌UL 486C & IEC 61238-1 Class B certified‌ for 600V applications in renewable energy systems and switchgear

Send email to us

Dimensions

Bolt Size	#10 in
Hole Spacing (H)	5/8 in
Tang Width (C)	0.50 in
Barrel length (B)	0.81 in
Overall length (L)	1.65 in
Inner diameter (ID)	0.28 in
Outer diameter(OD)	0.38 in

General Specifications

Colour Code	Gray
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	Without inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
