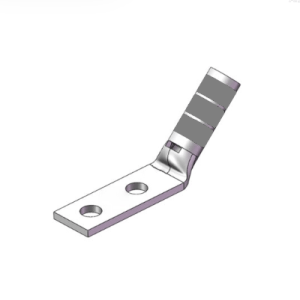

D4-1058HW 45°Copper Lug AWG4# two hole #10 hole spacing 5/8 Gray Color Coded lugs

D4-1058HW 45°Copper Lug AWG4# two hole #10 hole spacing 5/8 Gray Color Coded

Description

The ‌D4-1058HW‌ angled terminal delivers:

‌Premium T2 copper‌ (99.99% purity) with 58.0MS/m conductivity, ensuring minimal energy loss in high-load circuits
‌4AWG compatibility‌ and 45° offset design for optimized space utilization in electrical panels1
‌Dual #10 holes‌ with 5/8″ center spacing, compliant with ANSI/DIN bolt standards for universal mounting
‌Gray color coding‌ for quick identification in complex industrial wiring systems

‌Technical Advantages:‌

‌Material Excellence‌: Annealed T2 copper resists oxidation and hydrogen embrittlement in -55°C to 150°C environments
‌Structural Reliability‌: Cold-forged construction provides 30% higher shear strength compared to stamped alternatives
‌Certifications‌: Meets UL 486A and IEC 61238-1 standards for critical power transmission applications

Send email to us

Dimensions

Bolt Size	#10 in
Hole Spacing(H)	5/8 in
Tang Width (C)	0.50 in
Barrel length (B)	0.81 in
Overall length (L)	1.94 in
Inner diameter (ID)	0.28 in
Outer diameter (OD)	0.38 in

General Specifications

Colour	Gray
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
