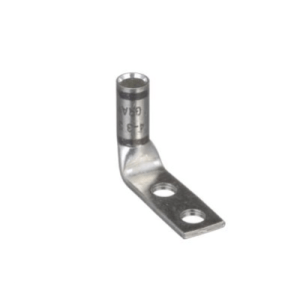

D4-1401FW UL Certified T2 Copper Terminal | 4 AWG | 2-Hole 1/4″ Bolt | 1.0″ Spacing | Standard Barrel

Description

  • Feature : Precision-engineered terminal manufactured from high-conductivity T2 copper, featuring dual 1/4″ bolt holes with 1.0″ center spacing and UL certification

  • Advantage : Dual-hole mounting provides superior mechanical stability and vibration resistance, while T2 copper ensures maximum electrical conductivity and durability

  • Benefit : Guarantees reliable electrical connections in demanding applications, reduces maintenance needs, and complies with industry safety standards

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Wire Size: 4 AWG

  • Bolt Size: 1/4″ (Dual Holes)

  • Hole Spacing: 1.0″ Center

  • Mounting: 2-Hole Pattern

  • Certification: UL Listed

  • Barrel Type: Standard

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical distribution systems, power equipment, and applications requiring UL certified, high-reliability connections.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)1.00 in
Tang Width (C)0.50 in
Barrel length (B)0.81 in
Overall length (L)2.12 in
Inner diameter (ID)0.28 in
Outer diameter (OD)0.38 in

General Specifications

ColourGray
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
