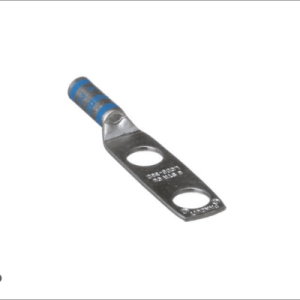

D6-1058W 6 AWG compression lug with dual #10 stud holes at 5/8" spacing, made from T2 copper with blue color coding.
D6-1058W 6 AWG compression lug with dual #10 stud holes at 5/8" spacing, made from T2 copper with blue color coding.
D6-1058W 6 AWG compression lug with dual #10 stud holes at 5/8" spacing, made from T2 copper with blue color coding.

D6-1058W 6 AWG T2 Copper Compression Lug | 2-Hole #10 Stud | 5/8″ Spacing | Blue Code

Description

  • Feature : Precision-engineered compression lug manufactured from high-conductivity T2 copper, designed for 6 AWG cables with dual #10 stud holes at 5/8″ center spacing and blue color coding

  • Advantage : T2 copper construction ensures optimal electrical conductivity and corrosion resistance, while dual-hole mounting provides superior mechanical stability against vibration and torque

  • Benefit : Delivers reliable power transmission in demanding environments, reduces maintenance requirements, and enables quick circuit identification through distinctive blue coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 6 AWG

  • Stud Size: #10 (Dual Holes)

  • Hole Spacing: 5/8″ Center

  • Mounting: 2-Hole Pattern

  • Color Code: Blue

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical distribution systems, power equipment, and applications requiring secure, vibration-resistant connections for 6 AWG conductors.

Send email to us

Dimensions

Bolt Size#10 in
Hole Spacing(H)5/8 in
Tang Width (C)0.42 in
Barrel length (B)0.81 in
Overall length (L)2.15 in
Inner diameter (ID)0.22 in
Outer diameter (OD)0.31 in

General Specifications

ColourBlue
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
