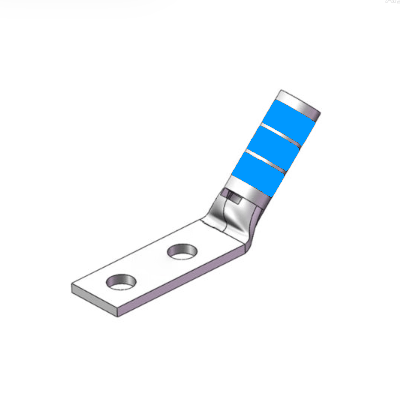

D6-1412H/W 45°Copper Lug AWG6# two hole 1/4 hole spacing 1/2 Blue Color Coded lugs

Description

The ‌D6-1412H/W‌ angled terminal features:

‌High-purity T2 copper‌ (99.99% purity) with 58.0MS/m conductivity, ensuring maximum current flow efficiency
‌6AWG compatibility‌ and 45° offset design for optimized cable routing in confined spaces
‌Dual 1/2″ holes‌ with 1/4″ center spacing, compliant with ANSI/DIN bolt standards
‌Blue color coding‌ for instant visual identification in complex electrical assemblies

‌Key Technical Specifications:‌

‌Material Superiority‌: Annealed T2 copper resists thermal fatigue (-55°C to 150°C) and hydrogen embrittlement
‌Structural Integrity‌: Cold-forged construction delivers 30% higher tensile strength than stamped alternatives
‌Certifications‌: UL 486A and IEC 61238-1 compliant for industrial power transmission reliability

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	1/2 in
Tang Width (C)	0.42 in
Barrel length (B)	0.81 in
Overall length (L)	2.08 in
Inner diameter (ID)	0.22 in
Outer diameter (OD)	0.31 in

General Specifications

Colour	Blue
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
