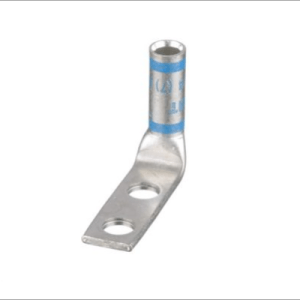

D6-1434FW 90-degree compression lug for 6 AWG cable, manufactured from T2 copper with dual 1/4" stud holes at 3/4" center spacing and blue die code insulation.D6-1434FW 90-degree compression lug for 6 AWG cable, manufactured from T2 copper with dual 1/4″ stud holes at 3/4″ center spacing and blue die code insulation.
D6-1434FW 90-degree compression lug for 6 AWG cable, manufactured from T2 copper with dual 1/4" stud holes at 3/4" center spacing and blue die code insulation.
D6-1434FW 90-degree compression lug for 6 AWG cable, manufactured from T2 copper with dual 1/4" stud holes at 3/4" center spacing and blue die code insulation.

D6-1434FW 90° T2 Copper Compression Lug | 6 AWG | 2-Hole 1/4″ Stud | 3/4″ Spacing | Blue Die Code

Description

  • Feature : 90-degree angled design manufactured from high-conductivity T2 copper, featuring dual 1/4″ stud holes with precise 3/4″ center spacing and blue die code insulation

  • Advantage : Dual-hole mounting system provides enhanced mechanical stability against vibration and rotation, while T2 copper construction ensures optimal electrical conductivity and corrosion resistance

  • Benefit : Ensures reliable power transmission in demanding applications, reduces maintenance requirements, and provides clear circuit identification through distinctive blue coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 6 AWG

  • Stud Size: 1/4″ (Dual Holes)

  • Hole Spacing: 3/4″ Center

  • Mounting: 2-Hole Pattern

  • Tongue Angle: 90°

  • Color Code: Blue Die

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical distribution systems, power equipment, and applications requiring secure, vibration-resistant connections with clear circuit identification.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)3/4 in
Tang Width (C)0.45 in
Barrel length (B)0.81 in
Overall length (L)1.78 in
Inner diameter (ID)0.22 in
Outer diameter (OD)0.31 in

General Specifications

ColourGray
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
