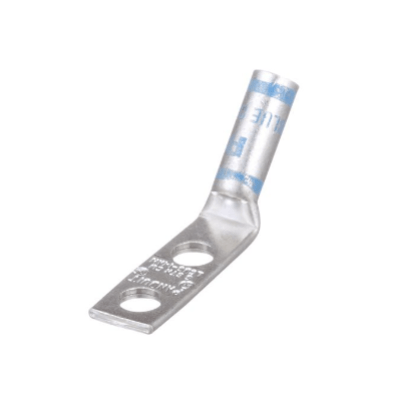

D6-1458H/W 45-degree compression lug made from tin-plated T2 copper with two 1/4" stud holes at 5/8" center spacing and blue die insulation.D6-1458H/W 45-degree compression lug made from tin-plated T2 copper with two 1/4″ stud holes at 5/8″ center spacing and blue die insulation.
D6-1458H/W 45-degree compression lug made from tin-plated T2 copper with two 1/4" stud holes at 5/8" center spacing and blue die insulation.
D6-1458H/W 45-degree compression lug made from tin-plated T2 copper with two 1/4" stud holes at 5/8" center spacing and blue die insulation.

D6-1458H/W 45° T2 Copper Compression Lug | 2-Hole 1/4″ Stud | 5/8″ Spacing | Blue Die | Tin Plated

Description

  • Feature : 45-degree angled design manufactured from high-conductivity T2 copper with full tin plating, featuring dual 1/4″ stud holes with 5/8″ center spacing and blue die insulation

  • Advantage : Tin-plated T2 copper provides enhanced corrosion resistance and optimal electrical conductivity, while dual-hole mounting ensures superior mechanical stability in angled applications

  • Benefit : Ensures long-term reliability in harsh environments, reduces maintenance requirements, and provides visual circuit identification through distinctive blue coloring

Data Overview

  • Material: T2 Copper (Tin Plated)

  • Stud Size: 1/4″ (Dual Holes)

  • Hole Spacing: 5/8″ Center

  • Mounting: 2-Hole Pattern

  • Tongue Angle: 45°

  • Color Code: Blue Die

  • Plating: Full Tin Coating

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical distribution systems, marine applications, and environments requiring corrosion-resistant, secure angled connections.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)5/8 in
Tang Width (C)0.45 in
Barrel length (B)0.54 in
Overall length (L)1.81 in
Inner diameter (ID)0.22 in
Outer diameter (OD)0.31 in

General Specifications

ColourBlue
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
