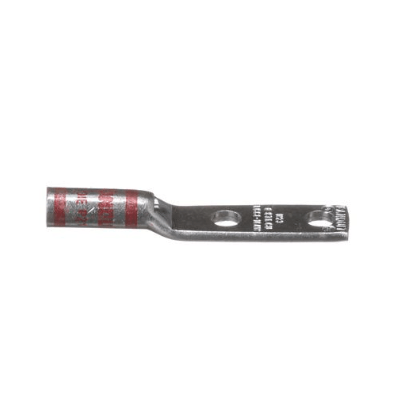

D8-1034W 8 AWG Two-Hole #10 Stud, 5/8″ Spacing Compression Lug

Description

  • ‌Premium T2 Copper‌: High-purity oxygen-free copper (IACS ≥98%) ensures maximum current carrying capacity and resistance to thermal fatigue.
  • ‌Dual-Stud Reinforcement‌: Two #10 stud holes with 5/8″ center spacing provide mechanical stability for high-vibration applications (e.g., industrial machinery).
  • ‌Hydraulic Compression Ready‌: Cold-forged barrel eliminates solder joints, compatible with DIN 46235 standard compression tools (dies 10-12mm).
  • ‌Certified Durability‌: UL 486A compliant, temperature range -50°C~150°C, ideal for grounding/neutral busbar connections in power distribution systems.
Send email to us

Dimensions

Bolt Size#10 in
Hole Spacing(H)3/4 in
Tang Width (C)0.41 in
Barrel length (B)0.44 in
Overall length (L)1.95 in
Inner diameter (ID)0.18 in
Outer diameter (OD)0.27 in

General Specifications

ColourRed
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
