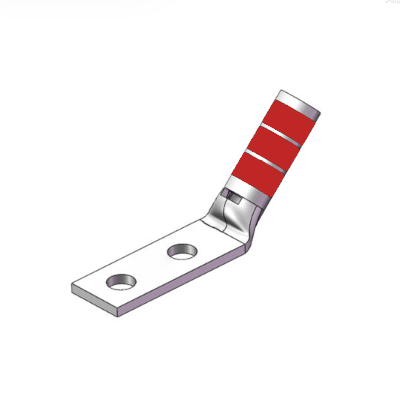

D8-1058HW Red Color-Coded 45°Copper Lug AWG 8# two hole #10 hole spacing 5/8

Description

The D8-1058HW is a 45° angled copper lug engineered for reliable wire termination in electrical systems.

Constructed with high-quality T2 red copper (ensuring excellent conductivity, corrosion resistance, and low contact resistance), it fits AWG 8# wires, features two #10-sized holes with 5/8″ spacing for stable mounting, and comes with red color coding for quick identification.

Ideal for industrial, automotive, and residential electrical setups requiring durable, precision connections.

Send email to us

Dimensions

Bolt Size	#10 in
Hole Spacing(H)	5/8 in
Tang Width (C)	0.41 in
Barrel length (B)	0.44 in
Overall length (L)	1.70 in
Inner diameter (ID)	0.18 in
Outer diameter (OD)	0.27 in

General Specifications

Colour	Red
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
