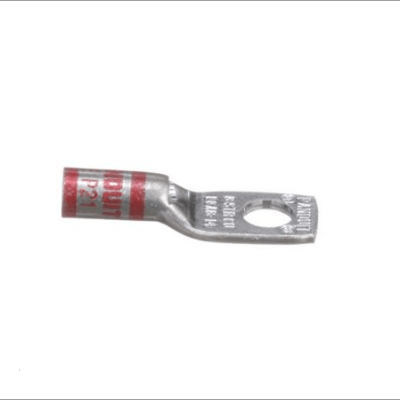

D8-10HW 8AWG #8-#10 compression lug color Red code standard barrel

Description

‌Material Advantage‌:
Premium T2 red copper construction ensures superior electrical conductivity and corrosion resistance, exceeding ASTM B187 standards.
‌Precision Compatibility‌:
Color-coded red barrel designed for #8-#10 AWG wire compression (8-10HW), featuring a standardized oval entry for effortless cable insertion.
‌Reliable Performance‌:
Meets UL 486A/B requirements with cold-welded compression technology, creating gas-tight connections for industrial and automotive applications.

Dimensions

Bolt Size	#8-#10 in
Tang Width (C)	0.41 in
Barrel length (B)	0.44 in
Overall length (L)	1.00 in
Inner diameter (ID)	0.18 in
Outer diameter (OD)	0.27 in

General Specifications

Colour	Red
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
