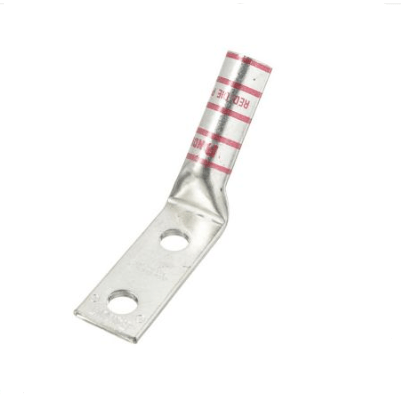

D8-1434HW long barrel compression lug for 8 AWG cable, made from T2 copper with two 1/4" stud holes at 5/8" center spacing and red die code insulation.D8-1434HW long barrel compression lug for 8 AWG cable, made from T2 copper with two 1/4″ stud holes at 5/8″ center spacing and red die code insulation.
D8-1434HW long barrel compression lug for 8 AWG cable, made from T2 copper with two 1/4" stud holes at 5/8" center spacing and red die code insulation.
D8-1434HW long barrel compression lug for 8 AWG cable, made from T2 copper with two 1/4" stud holes at 5/8" center spacing and red die code insulation.

D8-1434HW 8 AWG T2 Copper Compression Lug | Long Barrel | 2-Hole 1/4″ Stud | 5/8″ Spacing | Red Code

Description

  • Feature : Long barrel design manufactured from high-conductivity T2 copper, featuring dual 1/4″ stud holes with 5/8″ center spacing and red die code insulation

  • Advantage : Extended barrel provides maximum crimp integrity for 8 AWG wires, while dual-hole mounting ensures superior mechanical stability and vibration resistance

  • Benefit : Ensures reliable power transmission in demanding applications, reduces maintenance requirements, and enables easy circuit identification through distinctive red coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 8 AWG

  • Stud Size: 1/4″ (Dual Holes)

  • Hole Spacing: 5/8″ Center

  • Barrel Type: Long Barrel

  • Mounting: 2-Hole Pattern

  • Color Code: Red Die

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, power distribution systems, electrical cabinets, and applications requiring secure, vibration-resistant connections with enhanced crimp performance.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)3/4 in
Tang Width (C)0.44 in
Barrel length (B)0.44 in
Overall length (L)1.92 in
Inner diameter (ID)0.18 in
Outer diameter (OD)0.27 in

General Specifications

ColourRed
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
