您现在的位置： / / / / / D8-1458FW 90°Copper Lug AWG 8# two hole 1/4 hole spacing 5/8 long barr...

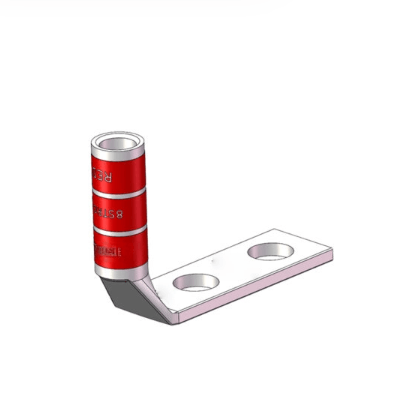

D8-1458FW 90°Copper Lug AWG 8# two hole 1/4 hole spacing 5/8 long barrel

Description

The ‌D8-1458FW‌ 90° copper lug features:

  • ‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior performance
  • ‌AWG 8# capacity‌ for medium-current applications
  • ‌90° angled design‌ with two 1/4″ spaced holes for versatile mounting
  • ‌5/8″ long barrel‌ ensuring a durable, low-resistance connection

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and electrical systems requiring reliable, space-efficient grounding solutions.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing (H)5/8 in
Tang Width (C)0.44 in
Barrel length (B)0.44 in
Overall length (L)1.62 in
Inner diameter (ID)0.18 in
Outer diameter(OD)0.27 in

General Specifications

Colour CodeRed
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
