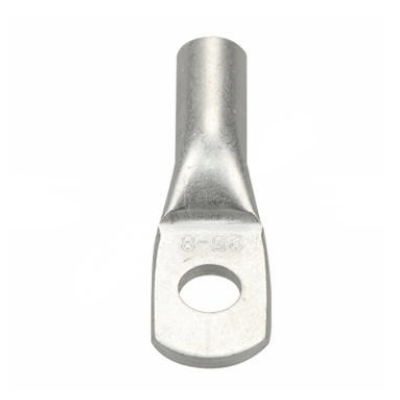

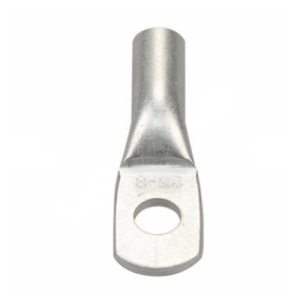

DIN10-5 Copper Tube crimp lugs 10mm2 entry hole 8AWG Tin-plated

GPH1.5-3 GPH Copper Tube Terminal Tin-Plated without inspection window

Description

T2 Copper Core‌: These DIN-standard lugs utilize premium T2 copper for optimal electrical conductivity and thermal resistance in high-current applications.

‌Precision Tube Design‌: Featuring a 10mm² cable entry hole and 8AWG compatibility, the cylindrical barrel ensures perfect fit for industrial cable terminations.

‌Protective Tin Plating‌: The electroplated tin surface provides superior oxidation resistance compared to bare copper alternatives, extending service life in humid environments.

‌Heavy-Duty Applications‌: Ideal for power distribution systems, renewable energy installations, and railway electrification where vibration resistance is critical.

‌DIN-Certified‌: Manufactured to DIN 46235 standards, guaranteeing mechanical strength and electrical performance for European market compliance.

Send email to us

Dimensions

φE(mm)	5.3
ΦD(mm)	6
Φd(mm)	4.5
W(mm)	9
B(mm)	10
L(mm)	34

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	Straight
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
