DIN35-6 Cable Lug AWG2 35mm² DIN46235 Copper Tube Terminal

Description

The ‌DIN35-6‌ cable lug is engineered with:

  • ‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior performance
  • ‌AWG 2 / 35mm² capacity‌ for high-current applications
  • ‌DIN 46235 standard compliance‌ for guaranteed quality and compatibility
  • ‌Cold-pressed construction‌ ensuring durable, low-resistance joints

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and electrical systems requiring robust, high-current grounding solutions.

Send email to us

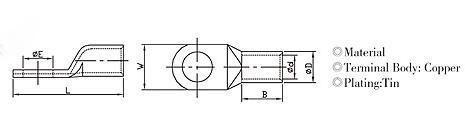

Dimensions

φE(mm)6.4
ΦD(mm)10
Φd(mm)7
W(mm)14
B(mm)20
L(mm)45.5

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
