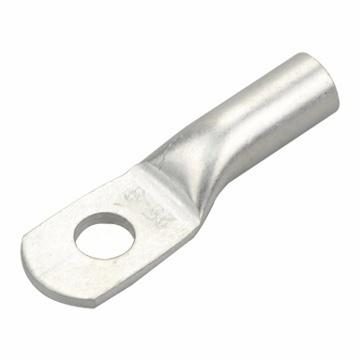

DIN6-5 DIN46235 Copper Tube Terminal wstandard barrel Tin-Plated

Description

The ‌DIN6-5‌ tube terminals deliver ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌AWG6 (16mm²) capacity‌ for high-current applications
  • ‌DIN46235 standard barrel‌ for secure wire connections
  • ‌5-10μm tin plating‌ for enhanced corrosion resistance
  • ‌Cold-forged construction‌ (UL486A/B compliant)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and heavy-duty electrical systems.

Send email to us

Dimensions

φE(mm)5.3
ΦD(mm)5.5
Φd(mm)3.8
W(mm)8.5
B(mm)10
L(mm)30.5

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
