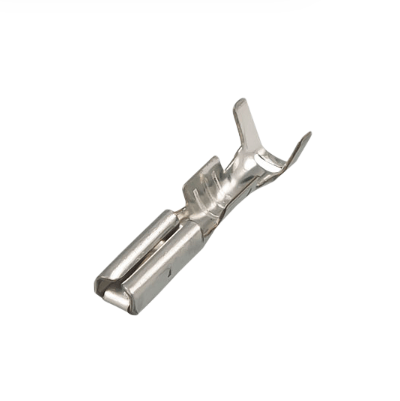

DJ624-2X0.6 (1500-0110 8240-4828)

Short Description

Part No. DJ624-2X0.6ADJ624-2X0.6B
 Material H65 H65
 Thickness (mm) 0.25 0.25
 Wire Range (mm²) 0.5~1.0 1.0~2.0
 Package Qty 4000 PCS/ROLL 4000 PCS/ROLL
 Basic Spec L: 16.0 W: 3.0 H: 2.5  L: 16.0 W: 3.0 H: 2.5
 Notes 1500-0110 8240-4828
Send email to us

Description

The DJ624-2X0.6 series (P/Ns: 1500-0110, 8240-4828) offers robust splice terminals for automotive wire-to-wire connections:

  • ‌Dual-crimp design‌ for 20-16 AWG wires (ensures mechanical + electrical bonding)
  • ‌Matte tin plating‌ (3-5µm) with ISO 4523/GB/T 12599 corrosion resistance
  • ‌PA66 insulation support‌ (UL94 V-0) for 105°C continuous service
  • ‌JASO D611-compliant‌ for Japanese OEM harness assemblies
  • ‌Direct replacement for Sumitomo 1500-0110 & Yazaki 8240-4828‌

Key applications: ‌Roof harness splices, door loom junctions, and fuse box branching‌. Passes GMW3191 shake testing (50Hz/50g).

Product Parameters

Attribute
Value
Applicable wire size
0.3-1.25mm2
Cable overall diameter (mm)1.4-2.9
MaterialsHeat-resistant copper alloy
Surface treatmentTin-plated
Thickness (mm)0.25
Contact resistance
Initial
3mΩ Max.
after durability tests
10mΩ Max.
Leak current100μA Max.
Insulation resistance100MΩ Min.

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
