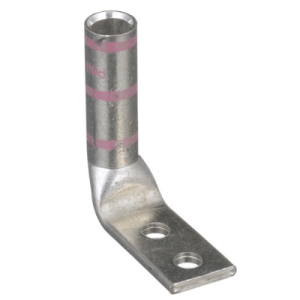

DL1/0-1458FW 90 Degree Copper Compression Lug | 1/0 AWG, 2-Hole x 1/4″ Stud, 5/8″ Spacing, Long Barrel (Pink)

DL1/0-1458FW 90° T2 Copper Compression Lug | 1/0 AWG | 2-Hole 1/4″ Stud | Long Barrel | Pink Code

Description

Feature: 90-degree angled compression lug manufactured from high-conductivity T2 copper, featuring long barrel design for 1/0 AWG cables with dual 1/4″ stud holes at 5/8″ center spacing and pink color coding

Advantage: Long barrel design provides maximum crimp integrity and superior pull-out resistance, while T2 copper construction ensures optimal electrical conductivity and the 90-degree angle facilitates installation in confined spaces

Benefit: Ensures reliable power transmission in space-constrained applications, reduces installation time in tight panels, and enables quick circuit identification through distinctive pink coloring

Data Overview

Parameter	Specification
Material	T2 Copper (High Conductivity)
Cable Range	1/0 AWG
Stud Size	1/4″ (Dual Holes)
Hole Spacing	5/8″ Center
Tongue Angle	90°
Barrel Type	Long Barrel
Mounting	2-Hole Pattern
Color Code	Pink
Standards	UL 486A, RoHS Compliant
Temperature Rating	-40°C to 125°C

Application Scenarios

Industrial control panels with space constraints
Electrical distribution boxes requiring angled connections
Renewable energy systems
Applications needing secure, high-current 90-degree connections

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	5/8 in
Tang Width (C)	0.75 in
Barrel length (B)	1.38 in
Overall length (L)	2.08 in
Inner diameter (ID)	0.39 in
Outer diameter (OD)	0.52 in

General Specifications

Colour	Pink
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
