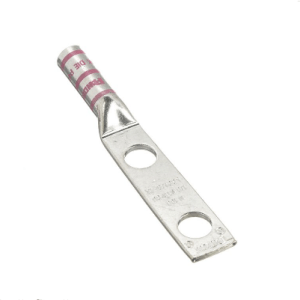

DL1/0-1458W Long Barrel Lug – T2 Copper 1/0 AWG Terminal with Straight Tongue & 1/4″ Studs

DL1/0-1458W 1/4Stud 5/8″ Spacing long Barrel Copper 2 Hole Straight Tongue Compression Lug

Description

‌Enhanced Conductivity‌: Forged from premium T2 copper (C11000) with 101% IACS rating, exceeding ASTM B187 requirements for substation and switchgear installations.
‌Structural Advantage‌: Extended 35mm barrel length provides superior crimp retention, while straight tongue design ensures flush busbar mounting.
‌Mechanical Security‌: Twin 1/4″-20 threaded studs with 5/8″ (15.875mm) center spacing resist torque deformation in vibration-heavy environments.
‌Standard Compliance‌: UL 486A & IEC 61238-1 certified for compression connections (dies 12-14mm), compatible with 1/0 AWG (50mm²) conductors.

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	5/8 in
Tang Width (C)	0.75 in
Barrel length (B)	0.88 in
Overall length (L)	2.54in
Inner diameter (ID)	0.39 in
Outer diameter (OD)	0.52 in

General Specifications

Colour	Pink
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
