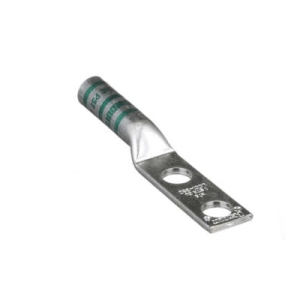

DL1-1458/W 1 AWG compression terminal with standard tongue design, made from T2 copper with dual 1/4" stud holes at 5/8" spacing and green insulation.
DL1-1458/W 1 AWG compression terminal with standard tongue design, made from T2 copper with dual 1/4" stud holes at 5/8" spacing and green insulation.
DL1-1458/W 1 AWG compression terminal with standard tongue design, made from T2 copper with dual 1/4" stud holes at 5/8" spacing and green insulation.

DL1-1458/W 1 AWG T2 Copper Compression Terminal | 2-Hole Standard Tongue | 1/4″ Stud | Green Code

Description

  • Feature : Standard tongue compression terminal manufactured from high-conductivity T2 copper, designed for 1 AWG cables with dual 1/4″ stud holes at 5/8″ center spacing and green insulation

  • Advantage : Dual-hole mounting provides enhanced mechanical stability against vibration and rotation, while T2 copper construction ensures optimal electrical conductivity and corrosion resistance

  • Benefit : Ensures reliable power transmission in demanding applications, reduces maintenance requirements, and provides clear circuit identification through distinctive green coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 1 AWG

  • Stud Size: 1/4″ (Dual Holes)

  • Hole Spacing: 5/8″ Center

  • Tongue Type: Standard

  • Mounting: 2-Hole Pattern

  • Color Code: Green

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, power distribution systems, electrical cabinets, and applications requiring secure, vibration-resistant connections with reliable performance.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)5/8 in
Tang Width (C)0.50 in
Barrel length (B)1.38 in
Overall length (L)2.87 in
Inner diameter (ID)0.36 in
Outer diameter (OD)0.46 in

General Specifications

ColourGreen
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
