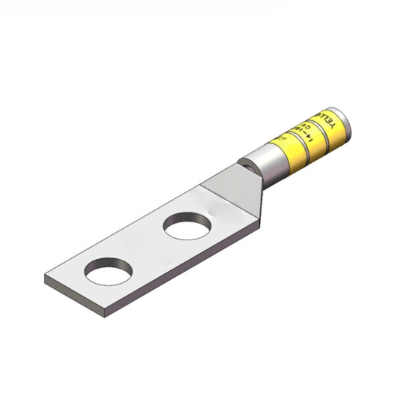

DL1410-3801/W Copper Lug standard barrel AWG14-10# two hole 3/8 hole spacing1 yellow

DL1410-3801/W Copper Lug AWG14-10# two hole 3/8 hole spacing1 yellow

Description

The ‌DL1410-3801/W‌ copper lug is engineered with:

‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior performance
‌AWG 14-10# capacity‌ for low to medium-current applications
‌Two-hole design with 3/8″ spacing‌ for versatile and secure mounting
‌Yellow color-coding‌ for easy identification in electrical systems
‌Cold-pressed construction‌ ensuring durable, low-resistance joints

‌Applications:‌ Ideal for automotive wiring, industrial power distribution, and electrical systems requiring reliable, color-coded grounding solutions.

Send email to us

Dimensions

Bolt Size	3/8
Hole Spacing (H)	1 in
Tang Width (C)	0.61 in
Barrel length (B)	0.69 in
Overall length (L)	2.72 in
Inner diameter (ID)	0.13 in
Outer diameter (OD)	0.22 in

General Specifications

Colour Code	Yellow
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
