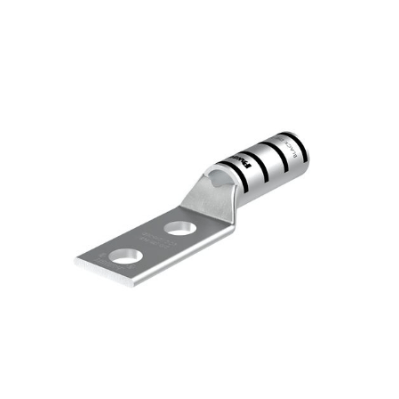

DL2/0-1401/W long Barrel Copper 2 Hole Straight Tongue Compression Lug 1/4 Stud 1″ Spacing

Description

‌Premium Conductivity‌: Manufactured from electrolytic T2 copper (C11000) with 101% IACS conductivity, ideal for 600V+ electrical systems requiring minimal voltage drop.
‌Extended Connection Interface‌: 1″ (25.4mm) stud center spacing accommodates oversized busbars in switchgear and transformer applications.
‌Optimized Crimp Performance‌: 40mm long barrel ensures maximum conductor contact area for 2/0 AWG (67.4mm²) cables when using 12-ton hydraulic crimpers.
‌Rugged Construction‌: Zinc-plated steel hardware with dual 1/4″-20 studs resists galvanic corrosion in outdoor substations (UL 486A & IEC 61238-1 compliant).

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	1 in
Tang Width (C)	0.83 in
Barrel length (B)	1.50 in
Overall length (L)	3.57 in
Inner diameter (ID)	0.45 in
Outer diameter (OD)	0.56 in

General Specifications

Colour	Black
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
