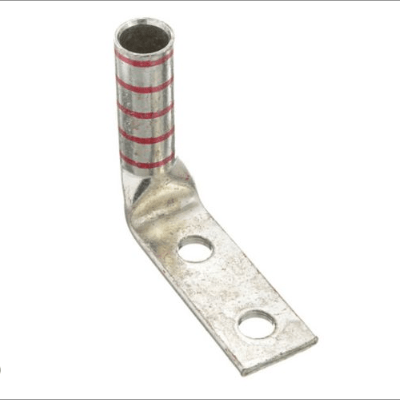

DL350-1243FW 90-degree heavy duty compression lug for 350 kcmil cable, manufactured from T2 copper with long barrel design, dual 1/2" stud holes at 1-3/4" spacing.DL350-1243FW 90-degree heavy duty compression lug for 350 kcmil cable, manufactured from T2 copper with long barrel design, dual 1/2″ stud holes at 1-3/4″ spacing.
DL350-1243FW 90-degree heavy duty compression lug for 350 kcmil cable, manufactured from T2 copper with long barrel design, dual 1/2" stud holes at 1-3/4" spacing.
DL350-1243FW 90-degree heavy duty compression lug for 350 kcmil cable, manufactured from T2 copper with long barrel design, dual 1/2" stud holes at 1-3/4" spacing.

DL350-1243FW 90° T2 Copper Compression Lug | 350 kcmil | Long Barrel | 2-Hole 1/2″ Stud | 1-3/4″ Spacing

Description

Product Detail

  • Feature : 90-degree heavy duty design manufactured from high-conductivity T2 copper, featuring extended long barrel, dual 1/2″ stud holes with 1-3/4″ center spacing

  • Advantage : Long barrel provides maximum crimp surface area for 350 kcmil conductors, while dual-hole mounting ensures exceptional mechanical stability in high-vibration environments

  • Benefit : Guarantees reliable power transmission in high-current applications, reduces connection resistance, and provides long-term durability in demanding industrial settings

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Conductor Size: 350 kcmil

  • Stud Size: 1/2″ (Dual Holes)

  • Hole Spacing: 1-3/4″ Center

  • Barrel Type: Long Barrel

  • Mounting: 2-Hole Pattern

  • Tongue Angle: 90°

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution, electrical substations, generator connections, heavy equipment wiring, and other high-current applications requiring reliable, heavy-duty connections.

Send email to us

Dimensions

Bolt Size1/2 in
Hole Spacing(H)1-3/4 in
Tang Width (C)1.70 in
Barrel length (B)2.69 in
Overall length (L)4.44 in
Inner diameter (ID)0.92 in
Outer diameter (OD)1.19 in

General Specifications

ColourRED
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
