DL4-10H/W Compression Lug 4AWG 1 Hole 45° Tongue #10 Stud code gray

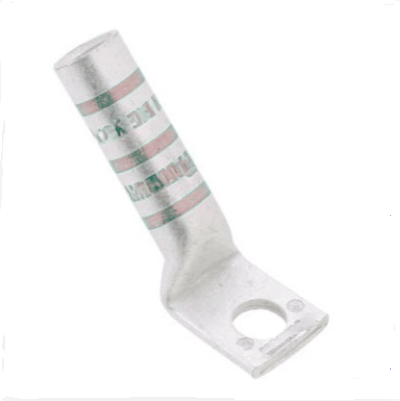

DL4-10H/W 45° Angled Compression Lug | 4 AWG | #10 Stud | Single Hole | Code Gray

Description

Professional-grade 45-degree angled compression lug engineered for efficient power connections in space-restricted applications. Features precision-formed single-hole mounting and angled tongue design for optimal installation flexibility. Code gray insulation provides reliable dielectric protection and quick circuit identification.

Technical Specifications:

Material: High-Conductivity Copper
Cable Range: 4 AWG
Stud Size: #10
Mounting: Single Hole
Tongue Angle: 45°
Insulation: Code Gray
Standards: UL 486A, RoHS Compliant
Temperature Range: -55°C to 125°C

Application Scenarios:
Ideal for industrial control panels, electrical switchgear, power distribution systems, renewable energy installations, and equipment requiring reliable angled connections in confined spaces.

Send email to us

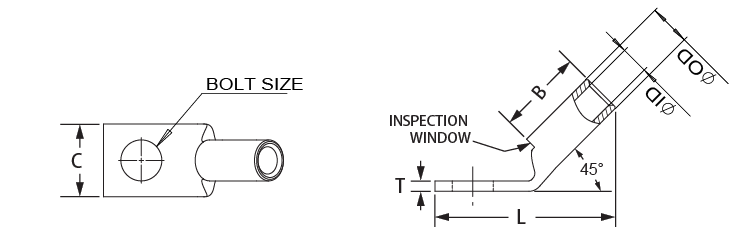

Dimensions

Bolt Size	#10 in
Tang Width (C)	0.50 in
Barrel length (B)	1.12 in
Overall length (L)	1.58 in
Inner diameter (ID)	0.28 in
Outer diameter (OD)	0.38 in

General Specifications

Colour	Gray
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
