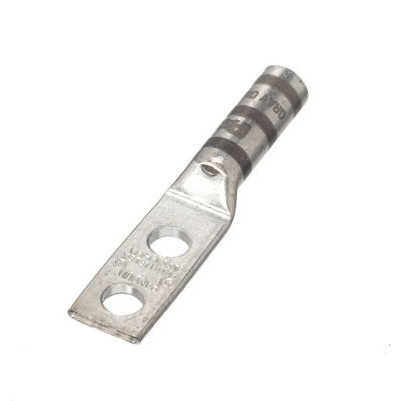

DL4-1458/W 2 Hole 2AWG Bolt site1/4” Long Barrel Code Gray Compression Lug

Description

Material:‌ Made of high-purity T2 copper for superior conductivity (≥98% IACS) and corrosion resistance.
‌Design:‌ Long-barrel gray lug with two 1/4″ bolt holes for robust mechanical and electrical bonding.
‌Compatibility:‌ Optimized for 2AWG wires, ideal for high-current applications in automotive, industrial, and electrical systems.

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	5/8 in
Tang Width (C)	0.50 in
Barrel length (B)	1.12 in
Overall length (L)	4.14 in
Inner diameter (ID)	0.28 in
Outer diameter (OD)	0.38 in

General Specifications

Colour	Gray
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
