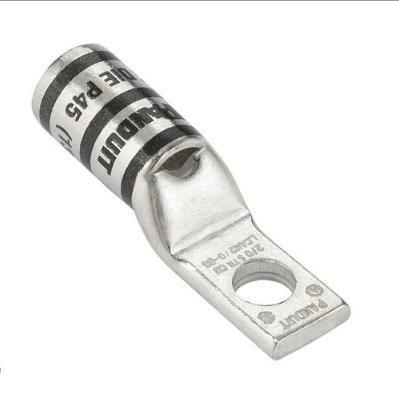

DL500-3801 500KCM Copper 1 Hole 3/8″Narrow Tongue Tin Plt Copper Compression Lug

DL500-3801 Copper 1 Hole 3/8″Narrow Tongue Tin Plt Copper Compression Lug

Description

Material:‌ High-purity T2 copper with tin plating for enhanced conductivity and corrosion resistance.
‌Design:‌ 3/8″ narrow tongue with single-hole compression for easy installation.
‌Application:‌ Ideal for industrial, automotive, and electrical systems requiring reliable terminal connections.

Dimensions

Bolt Size	3/8 in
Tang Width (C)	1.55 in
Barrel length (B)	2.25 in
Overall length (L)	4.85 in
Inner diameter (ID)	0.84 in
Outer diameter (OD)	1.06 in

General Specifications

Colour	Black
Material	Copper
Tongue Type	Narrow
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
