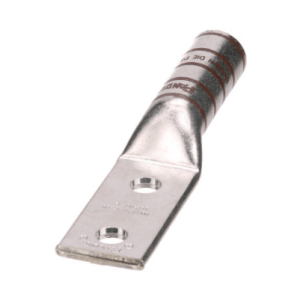

L500-3801/W 500 MCM T2 Copper Terminal | 2-Hole 3/8″ Stud | 1″ Spacing | Brown Code | Standard Barrel

Description

  • Feature : Standard barrel terminal manufactured from high-conductivity T2 copper, designed for 500 MCM cables with dual 3/8″ stud holes at 1-inch center spacing and brown color coding

  • Advantage : Dual-hole mounting provides superior mechanical stability against vibration and torque, while T2 copper construction ensures maximum current-carrying capacity and excellent conductivity

  • Benefit : Ensures reliable power transmission in high-vibration environments, reduces maintenance requirements, and provides clear circuit identification through brown coloring in industrial applications

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 500 MCM

  • Stud Size: 3/8″ (Dual Holes)

  • Hole Spacing: 1 Inch Center

  • Mounting: 2-Hole Pattern

  • Barrel Type: Standard

  • Color Code: Brown

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution systems, electrical substations, heavy machinery wiring, and applications requiring vibration-resistant, high-current connections with secure mounting.

Send email to us

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1.00 in
Tang Width (C)1.55 in
Barrel length (B)2.25 in
Overall length (L)4.85 in
Inner diameter (ID)0.84 in
Outer diameter (OD)1.06 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
