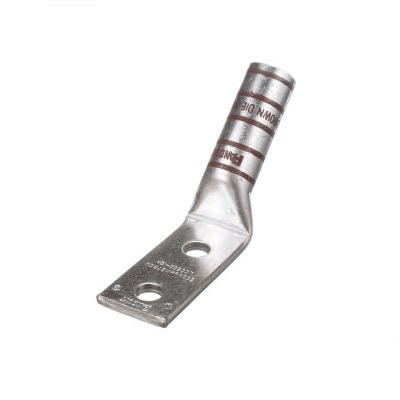

DL500-3801H/W 500 kcmil compression terminal with 45-degree angle, made from T2 copper with two 3/8" stud holes at 1-inch spacing and brown insulation coding.DL500-3801H/W 500 kcmil compression terminal with 45-degree angle, made from T2 copper with two 3/8″ stud holes at 1-inch spacing and brown insulation coding.
DL500-3801H/W 500 kcmil compression terminal with 45-degree angle, made from T2 copper with two 3/8" stud holes at 1-inch spacing and brown insulation coding.
DL500-3801H/W 500 kcmil compression terminal with 45-degree angle, made from T2 copper with two 3/8" stud holes at 1-inch spacing and brown insulation coding.

DL500-3801H/W 500 kcmil T2 Copper Compression Terminal | 45° Angle | 2-Hole 3/8″ Stud | Brown Code

Description

  • Feature : 45-degree angled heavy-duty terminal manufactured from high-conductivity T2 copper, designed for 500 kcmil cables with dual 3/8″ stud holes at 1-inch center spacing and brown insulation coding

  • Advantage : T2 copper construction ensures maximum current-carrying capacity and corrosion resistance, while dual-hole mounting provides exceptional mechanical stability in high-vibration environments

  • Benefit : Delivers reliable power transmission in demanding industrial applications, reduces connection failures, and enables easy circuit identification through brown color coding

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 500 kcmil

  • Stud Size: 3/8″ (Dual Holes)

  • Hole Spacing: 1 Inch Center

  • Mounting: 2-Hole Pattern

  • Tongue Angle: 45°

  • Color Code: Brown

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution systems, electrical substations, heavy machinery wiring, renewable energy installations, and applications requiring high-current, vibration-resistant angled connections.

Send email to us

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1.00 in
Tang Width (C)1.55 in
Barrel length (B)2.25 in
Overall length (L)4.29 in
Inner diameter (ID)0.84 in
Outer diameter (OD)1.06 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Related Products

Wire harness finished product

123456

Cable Lugs Application

1234

We are committed to: new material technology research and development and in-depth customization services

Kunshan Xinluan New Material Technology Co.
Sales Office: Room 2005, Building 21, Jitian International Plaza, No.672 Chuangye Road, Kunshan Development Zone, Kunshan, China
Postal Code: 215300
Tel: +86 13285110837
Email: Anny@xinluancq.com
Email: Tina@suqinsz.com
Email:Jean@xinluancq.com
WhatsApp: 8613285110837
