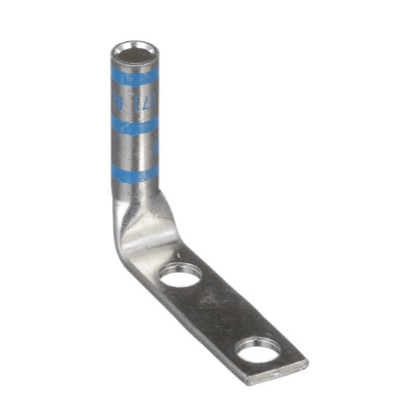

DL6-1401FW 90-degree compression terminal for 6 AWG cables, made from T2 copper with long barrel design, dual 1/4" stud holes at 1-inch spacing and blue color coding.
DL6-1401FW 90-degree compression terminal for 6 AWG cables, made from T2 copper with long barrel design, dual 1/4" stud holes at 1-inch spacing and blue color coding.
DL6-1401FW 90-degree compression terminal for 6 AWG cables, made from T2 copper with long barrel design, dual 1/4" stud holes at 1-inch spacing and blue color coding.

DL6-1401FW 90° T2 Copper Compression Terminal | 6 AWG | Long Barrel | 2-Hole 1/4″ Stud | Blue Code

Description

Feature: 90-degree angled compression terminal manufactured from high-conductivity T2 copper, featuring extended long barrel design for 6 AWG cables with dual 1/4″ stud holes at 1-inch center spacing and blue color coding

Advantage: Long barrel construction provides maximum crimp integrity and superior mechanical retention, while T2 copper ensures optimal electrical conductivity and the right-angle design facilitates installation in space-constrained enclosures

Benefit: Guarantees reliable connections in compact electrical panels, reduces installation time in dense configurations, and enables quick circuit identification through distinctive blue coloring

Data Overview

ParameterSpecification
MaterialT2 Copper (High Conductivity)
Cable Range6 AWG
Stud Size1/4″ (Dual Holes)
Hole Spacing1-Inch Center
Tongue Angle90°
Barrel TypeLong Barrel
Mounting2-Hole Pattern
Color CodeBlue
StandardsUL 486A, RoHS Compliant
Temperature Rating-40°C to 125°C

Application Scenarios

  • Industrial control panels with limited space

  • Electrical distribution equipment

  • Compact power systems

  • Applications requiring reliable 6 AWG angled connections

Send email to us

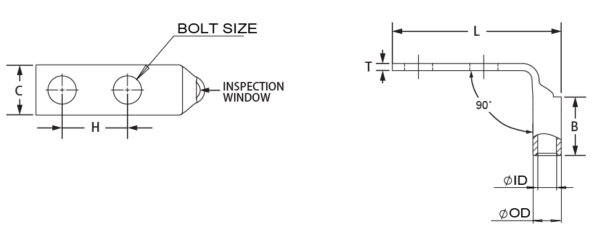

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1.00 in
Tang Width (C)0.45 in
Barrel length (B)1.12 in
Overall length (L)2.03 in
Inner diameter (ID)0.22 in
Outer diameter (OD)0.31 in

General Specifications

ColourBlue
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
