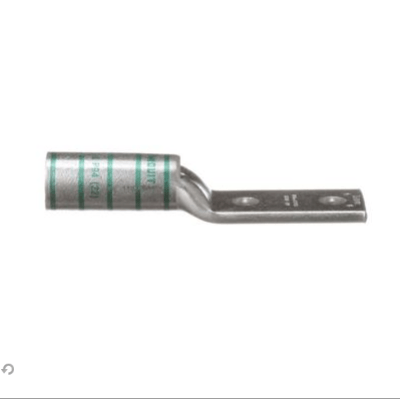

DL600-3801/W Comp. Lug, 600, Tin Plt Copper, Strt, Two 3/8″ Stud

Description

This industrial-grade compression lug is manufactured from T2 copper with complete tin plating, providing maximum electrical conductivity and corrosion protection. Engineered for 600 MCM cable applications, it features two 3/8-inch stud openings for secure high-amperage connections. The straight barrel design ensures proper crimping integrity and installation flexibility.

Technical Specifications:

Material: T2 Copper with Tin Plating
Cable Range: 600 MCM
Stud Size: Dual 3/8″ Holes
Type: Straight Barrel Compression Lug
Compliance: UL, IEC, ASTM Standards

Application Scenarios:
Industrial power systems, renewable energy installations, marine electrical systems, data center power distribution, and heavy equipment wiring.

Send email to us

Dimensions

Bolt Size	3/8 in
Hole Spacing(H)	1.00 in
Tang Width (C)	1.70 in
Barrel length (B)	2.69 in
Overall length (L)	5.20 in
Inner diameter (ID)	0.92 in
Outer diameter (OD)	1.19 in

General Specifications

Colour	Green
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
