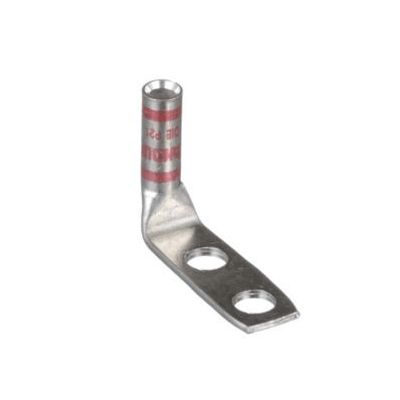

DL8-1458F/W UL certified compression terminal for 8 AWG wire, made from T2 copper with long barrel, dual 1/4" bolt holes at 5/8" spacing and red insulation.DL8-1458F/W UL certified compression terminal for 8 AWG wire, made from T2 copper with long barrel, dual 1/4″ bolt holes at 5/8″ spacing and red insulation.
DL8-1458F/W UL certified compression terminal for 8 AWG wire, made from T2 copper with long barrel, dual 1/4" bolt holes at 5/8" spacing and red insulation.
DL8-1458F/W UL certified compression terminal for 8 AWG wire, made from T2 copper with long barrel, dual 1/4" bolt holes at 5/8" spacing and red insulation.

DL8-1458F/W UL Certified T2 Copper Terminal | 8 AWG | 2-Hole 1/4″ Bolt | 5/8″ Spacing | Long Barrel | Red

Description

  • Feature : Long barrel design manufactured from high-conductivity T2 copper, featuring dual 1/4″ bolt holes with 5/8″ center spacing, red insulation, and UL certification

  • Advantage : Extended barrel provides maximum crimp integrity for 8 AWG wires, while dual-hole mounting ensures superior mechanical stability and vibration resistance

  • Benefit : Guarantees reliable electrical connections in demanding applications, reduces maintenance costs, and complies with international safety standards

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Wire Size: 8 AWG

  • Bolt Size: 1/4″ (Dual Holes)

  • Hole Spacing: 5/8″ Center

  • Barrel Type: Long Barrel

  • Mounting: 2-Hole Pattern

  • Color: Red

  • Certification: UL Listed

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control systems, electrical panels, power distribution equipment, and applications requiring UL certified, high-reliability connections with enhanced crimp performance.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)5/8 in
Tang Width (C)0.44 in
Barrel length (B)0.81 in
Overall length (L)1.61 in
Inner diameter (ID)0.18 in
Outer diameter (OD)0.27 in

General Specifications

ColourRED
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
