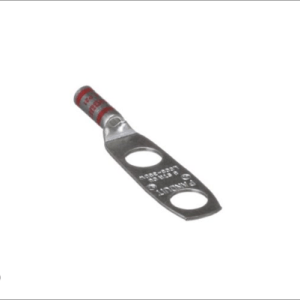

DL8-3801W 8 AWG compression lug made from high-conductivity T2 copper with dual 3/8" stud holes at 1.0" spacing and red die coding.
DL8-3801W 8 AWG compression lug made from high-conductivity T2 copper with dual 3/8" stud holes at 1.0" spacing and red die coding.
DL8-3801W 8 AWG compression lug made from high-conductivity T2 copper with dual 3/8" stud holes at 1.0" spacing and red die coding.

DL8-3801W 8 AWG T2 Copper Compression Lug | 2-Hole 3/8″ Stud | 1.0″ Spacing | Red Die Code

Description

  • Feature : Precision-engineered compression lug manufactured from high-conductivity T2 copper, designed for 8 AWG cables with dual 3/8″ stud holes at 1.0″ center spacing and red die coding

  • Advantage : T2 copper construction ensures maximum electrical conductivity and excellent corrosion resistance, while dual-hole mounting provides enhanced vibration resistance and mechanical stability

  • Benefit : Guarantees reliable power transmission in demanding applications, reduces maintenance costs, and enables quick circuit identification through distinctive red coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 8 AWG

  • Stud Size: 3/8″ (Dual Holes)

  • Hole Spacing: 1.0″ Center

  • Mounting: 2-Hole Pattern

  • Color Code: Red Die

  • Conductivity: ≥98% IACS

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control systems, power distribution panels, electrical equipment, and applications requiring secure, vibration-resistant connections for 8 AWG conductors.

Send email to us

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1.00 in
Tang Width (C)0.58 in
Barrel length (B)0.81 in
Overall length (L)2.76 in
Inner diameter (ID)0.18 in
Outer diameter (OD)0.27 in

General Specifications

ColourRed
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
