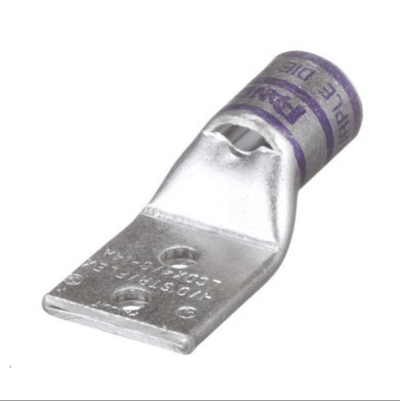

DS4/0-1401W Compression Lug 4/0 AWG 1/4″ Stud Purple Copper 2 Hole lugs

T2 Copper DS4/0-1401W Compression Lug for 4/0 AWG, 1/4″ Stud, 2-Hole Mounting, Purple.

Description

Engineered for reliable, high-conductivity connections, this compression lug is constructed from premium T2 copper alloy for optimal electrical performance and corrosion resistance. It is designed to terminate 4/0 AWG cable onto a 1/4″ stud. The two-hole mounting system ensures a secure, vibration-resistant mechanical connection. The purple nylon insulation provides durability and color-coded identification.

This lug is suitable for demanding applications in industrial control systems, power distribution equipment, and renewable energy installations where material integrity and long-term reliability are critical.

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	1 in
Tang Width (C)	1.02 in
Barrel length (B)	0.88 in
Overall length (L)	3.03 in
Inner diameter (ID)	0.56 in
Outer diameter (OD)	0.70 in

General Specifications

Colour	Green
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
