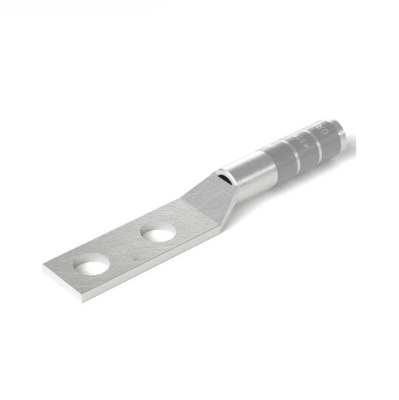

DS4-1458W ground Lugs AWG 4# two hole1/4, hole spacing 5/8 straight type Gray Printed

Description

The ‌DS4-1458W‌ grounding lug delivers ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌Dual 1/4″ (6.35mm) holes‌ (5/8″ spacing) for versatile mounting
  • ‌Gray printed markings‌ for quick identification
  • ‌Corrosion-resistant finishes‌:
    • Standard gray polymer coating (safety color-coding)
    • Optional nickel plating (5-10μm thickness)
  • ‌Cold-forged AWG4 (21.2mm²) terminal‌ (meets UL486A/B)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial equipment, solar farms, and data center grounding. Compliant with IEEE 80, NEC 250.84.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.55 in
Barrel length (B)0.50 in
Overall length (L)2.08 in
Inner diameter (ID)0.28 in
Outer diameter (OD)0.38 in

General Specifications

ColourGray
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
