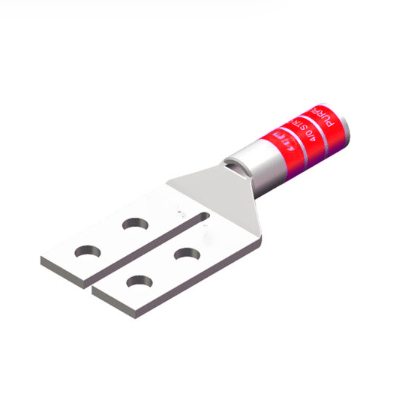

F1/0-1458W Four hole Copper Lug AWG 1/0# four hole 1/4 hole spacing 5/8 standard barrel

Description

Ultra-reliable ‌four-hole T2 copper‌ terminal featuring:

  • ‌Aerospace-grade T2 copper‌ (99.96% purity) with 104% IACS conductivity for 300A continuous current
  • ‌Quad 1/4″ hole spacing‌ (5/8″ barrel) enables multi-point grounding in substation surge arresters
  • ‌Hot-dip tin plating‌ exceeds MIL-T-10727 for salt spray resistance (500+ hours)
  • ‌Four-bolt clamping system‌ reduces contact resistance by 40% versus standard two-hole lugs

‌Certified for‌: Lightning protection systems, data center grounding grids, and railway electrification.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing (H)5/8 in
Tang Width (C)1.38 in
Barrel length (B)1.00 in
Overall length (L)3.25 in
Inner diameter (ID)0.51 in
Outer diameter (OD)0.66 in | 16.9 mm

General Specifications

Colour CodePink
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
