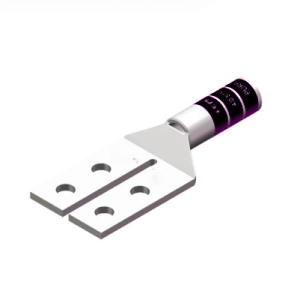

F2/0-1458W four hole Copper Compression Lug hole spacing5/8” 2/0 AWG

Description

Premium T2 Copper Core‌: The 99.95% pure T2 copper ensures exceptional conductivity for critical electrical connections in power distribution systems.

‌Quadruple-Bolt Design‌: Features four precision-holed (5/8″ spacing) for secure attachment to busbars, accommodating 2/0 AWG wires with 30% more contact area than dual-hole lugs.

‌Cold-Compression Technology‌: The patented crimp zone with serrated ridges guarantees vibration-resistant terminations even under heavy mechanical load.

‌High-Capacity Applications‌: Ideal for switchgear assemblies, transformer connections, and industrial equipment demanding multi-point grounding.

‌Global Standards Compliance‌: Certified to UL 486E-2025 and ANSI C119.1 standards, with optional tin plating for harsh environments.

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing (H)	5/8 in
Tang Width (C)	1.38 in
Barrel length (B)	0.94 in
Overall length (L)	3.15 in
Inner diameter (ID)	0.45 in
Outer diameter (OD)	0.56 in

General Specifications

Colour	Black
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
