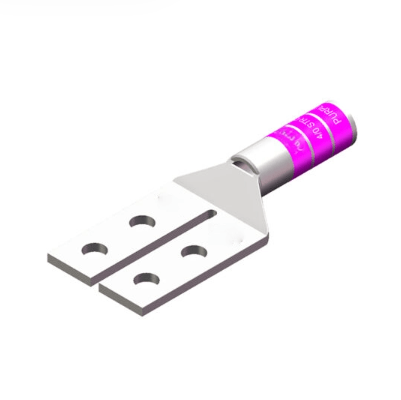

F4/0-1458W ground Lugs AWG 4/0# four hole 1/4,hole spacing 5/8 standard barrel with inspection window purple

Description

The ‌F4/0-1458W‌ grounding lug delivers ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

‌Four 1/4″ (6.35mm) holes‌ (5/8″ spacing) for versatile mounting
‌Purple polymer coating with inspection window‌ (safety color-coding)
‌Corrosion-resistant finishes‌:
- Standard purple coating
- Optional nickel plating (5-10μm thickness)
‌Cold-forged AWG4/0 (107.2mm²) terminal‌ (UL486A/B compliant)
‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial equipment, solar farms, and data center grounding. Compliant with IEEE 80 and NEC 250.84.

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing (H)	5/8 in
Tang Width (C)	1.38 in
Barrel length (B)	1.00 in
Overall length (L)	3.29 in
Inner diameter (ID)	0.55 in
Outer diameter (OD)	0.70 in

General Specifications

Colour Code	Purple
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
