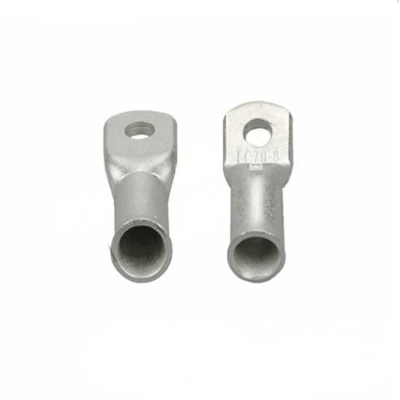

FC10-4 Tu Bell Mouth Copper Tube Terminals 8AWG 10mm² Cable Lug

Description

‌Premium T2 Copper Construction‌: Made from 99.97% pure electrolytic T2 copper for maximum current transfer efficiency in 1000V+ applications.

‌Bell-Mouth Entry Design‌: Features 45° flared entry for 30% faster cable insertion during mass termination projects.

‌Industrial-Grade Crimping‌: Reinforced 4.2mm wall thickness withstands 25kN mechanical stress in renewable energy and industrial motor connections.

‌Corrosion-Resistant Finish‌: Optional hot-dip tin plating available for marine and offshore power distribution systems.

‌Certified Performance‌: Meets IEC 61238-1 Class B and UL 486A-2025 standards with laser-etched size identification.

Send email to us

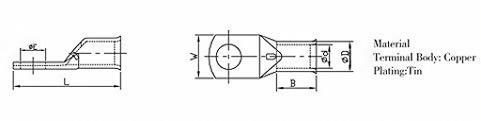

Dimensions

φE(mm)	4.3
ΦD(mm)	6.8
Φd(mm)	4.3
W(mm)	12
B(mm)	12
L(mm)	30.5

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	Straight
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
