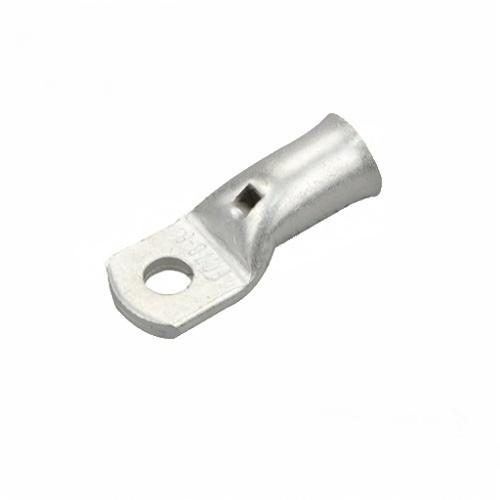

FC4-4 FC Bellmouth Copper Tube Terminal with inspection window 14-12AWG 2.5-4mm²

Description

The ‌FC4-4‌ tube terminals feature ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌14-12AWG (2.5-4mm²) capacity‌ for medium-current applications
  • ‌Unique bellmouth design with inspection window‌ for easy visual verification
  • ‌5-10μm tin plating‌ for superior corrosion resistance
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial automation, automotive wiring, and electrical systems requiring visual inspection.

Send email to us

Dimensions

φE(mm)4.3
ΦD(mm)5
Φd(mm)2.7
W(mm)9
B(mm)8.7
L(mm)25.7

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
