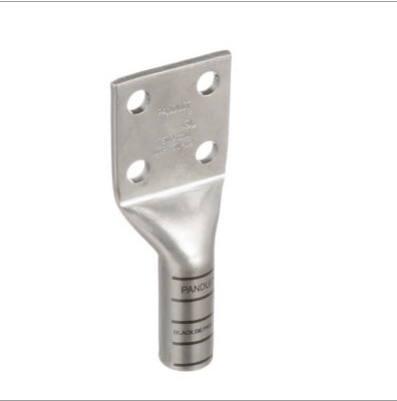

FL2/0-14UW 4 Hole Compression Lug 2/0AWG 1/4Stud 5/8-3/4 Spacing

1-14W ground Lugs AWG 1 one hole 1/4 standard type Green Printed

Description

This heavy-duty compression lug is constructed from high-purity T2 copper, delivering superior electrical conductivity and excellent mechanical durability. Designed for 2/0 AWG cable applications, it features a 1/4-inch stud connection and four-hole mounting configuration with 5/8-inch to 3/4-inch spacing for maximum installation stability and vibration resistance.

Technical Specifications:

Material: T2 Copper
Cable Size: 2/0 AWG
Stud Size: 1/4 Inch
Mounting: 4-Hole Pattern (5/8″-3/4″ Spacing)
Type: Compression Lug
Finish: Bare Copper

Application Scenarios:
Ideal for industrial control systems, power distribution equipment, renewable energy connections, and electrical grounding systems where secure, high-performance terminations are required.

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing (H)	5/8-3/4 in
Tang Width (C)	1.38 in
Barrel length (B)	1.50 in
Overall length (L)	3.71 in
Inner diameter (ID)	0.45 in
Outer diameter (OD)	0.58 in

General Specifications

Colour	Black
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
