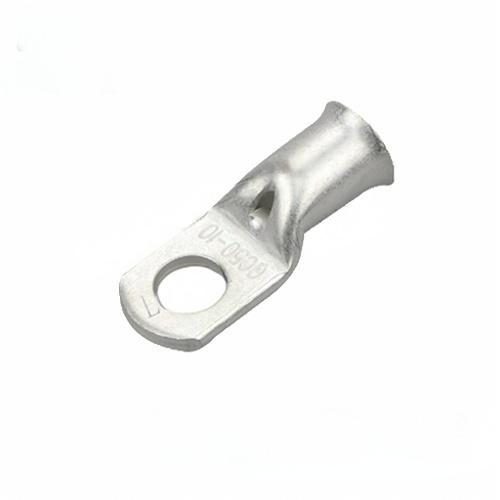

GC10-4 GC (Bellmouth) Copper Tube Terminal with inspection window 8AWG 10mm²

Description

The ‌GC10-4‌ tube terminals feature ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌8AWG (10mm²) capacity‌ for high-current applications
  • ‌Bellmouth design with inspection window‌ for easy visual verification
  • ‌5-10μm tin plating‌ for superior corrosion resistance
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial machinery, automotive wiring, and electrical systems requiring high-current capacity and visual inspection.

Send email to us

Dimensions

φE(mm)4.3
ΦD(mm)6.6
Φd(mm)4.5
W(mm)11
B(mm)9.5
L(mm)30

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
