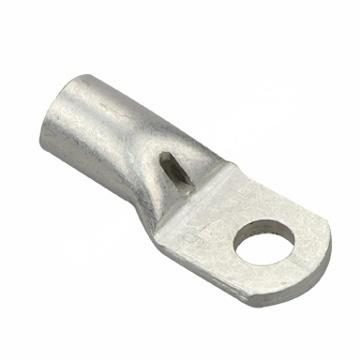

GC2.5-3 Cable Lug 16-14AWG 1.5-2.5m㎡ GC Straight Copper Tube Terminal

Description

Industrial-grade ‌straight T2 copper‌ terminal featuring:

  • ‌Seamless cold-forged T2 copper tube‌ (99.9% purity) with 101% IACS conductivity for 50A continuous current
  • ‌Precision straight barrel design‌ ensures 20% faster crimping versus angled variants
  • ‌Matte tin plating‌ resists oxidation (-40°C to 120°C) in automotive/industrial applications
  • ‌Dual AWG/mm² compatibility‌ meets UL 486A, IEC 61238-1, and CE standards

‌Certified for‌: Control panel wiring, motor terminals, and Class B electrical equipment connections

Send email to us

Dimensions

φE(mm)3.2
ΦD(mm)3.9
Φd(mm)2.3
W(mm)8
B(mm)7
L(mm)17

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
