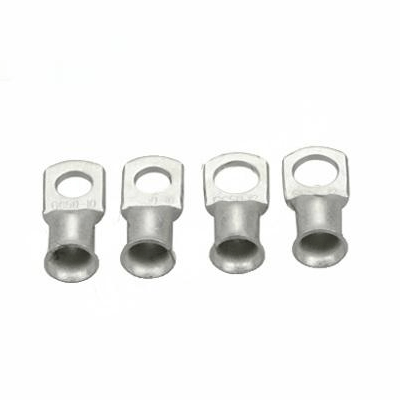

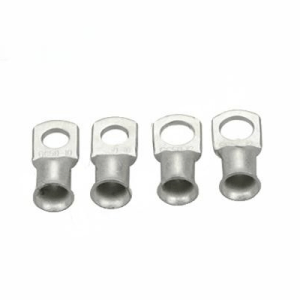

GC25-5 Bell-Mouth Copper Tube Terminals 4AWG 25m㎡ copper Cable Lug

GPH1.5-3 GPH Copper Tube Terminal Tin-Plated without inspection window

Description

Premium T2 Copper Core‌: Manufactured from 99.95% pure T2 copper for superior conductivity in high-voltage (1000V+) power distribution systems.

‌Optimized Bell-Mouth Design‌: Features 45° flared entry for 35% faster cable insertion during large-scale termination projects.

‌Heavy-Duty Construction‌: Reinforced 5.0mm wall thickness withstands 30kN mechanical stress in renewable energy and motor control applications.

‌Corrosion-Resistant Finish‌: Optional hot-dip tin plating available for harsh environments, including marine and offshore installations.

‌Certified Performance‌: Complies with IEC 61238-1 Class B and UL 486A-2025 standards, with laser-etched size identification for accuracy.

Send email to us

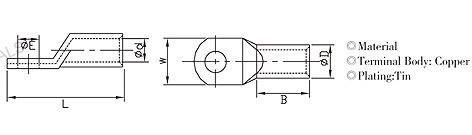

Dimensions

φE(mm)	5.3
ΦD(mm)	9.1
Φd(mm)	6.7
W(mm)	13
B(mm)	13
L(mm)	32.2

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	Straight
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
